Forged Fittings offer

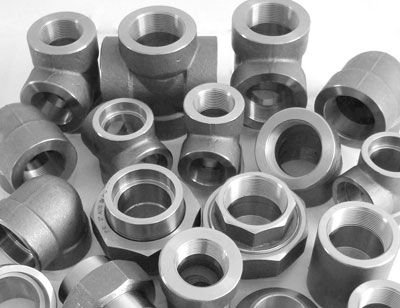

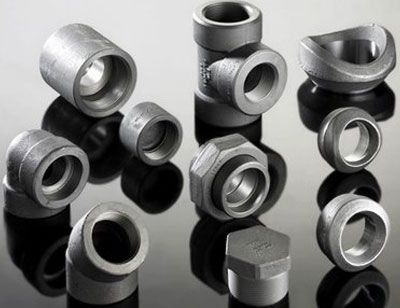

High Pressure Socket Weld Forged Fittings

Pressure Class	3000LBS, 6000LBS, 9000LBS
Socket Weld Forged Fittings Products	Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert
Dimension Specifications	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8″~4″ (DN6~DN100)

High Pressure Threaded Pipe Fittings

Pressure Class	3000LBS, 6000LBS, 9000LBS
Products	Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple
Dimension Specifications	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8″~4″ (DN6~DN100)

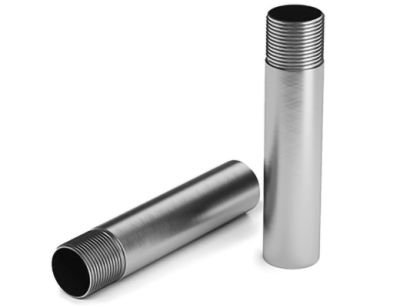

Pipe Nipples Production Range

Pipe Nipples – Production Range	Size	Standards
Round Nipples	1/8″ – 4″	BS3799
Hexagon Nipples	1/8″ – 2″	BS3799
Swaged Nipple	1/8″ – 2″	SH/T3419, MSS SP 95-2006

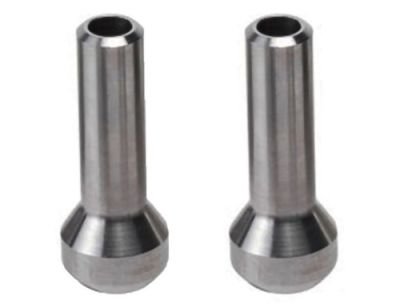

Carbon, Alloy, Stainless Steel Pipe Outlets – Manufacturing Standards

ASTM A182 – ASME SA182	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.11	Forged Fittings Socket – Welding and Threaded
MSS SP-97	Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded and Buttwelding Ends

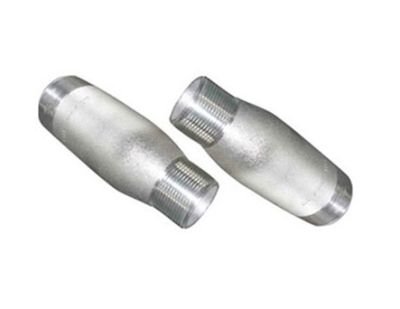

Swage Nipples Production Range, Specifications – Stainless Steel, Carbon Steel, Alloy Steel Swage Nipples

Size	1/8” to 8”, DN8 to DN200
Dimensions	MSS SP-95-2006, BS 3799
Raw Materials	A106 Gr. B Seamless Pipes, A105/A105N Bars, A182 304/304L Bars, A182 316/316L Bars, A312 304/304L Seamless Pipes, Duplex Seamless Pipes, A312 316/316L Seamless Pipes, A350-LF2, Alloy Steel Seamless Pipes/Bars
Material Specifications	ASTM A105, A350 LF2, ASTM A182 (F304,F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,F91)
Connection Ends	PBE: Plain both ends, BBE: Bevel both ends, TBE: Thread both ends PSE: Plain small end, BSE: Bevel small end, TSE: Thread small end PLE: Plain large end, BLE: Bevel large end, TLE: Thread large end Thickness: Standard, Extra Heavy, Schedule 160, or Double Extra Heavy
Ends	Beveled, Square Cut (for socket-weld), NPT/BSPT/BSP Threaded Swages, Customer Specification
Test Certificates	EN 10204 3.1, Raw Material Certificates Available, Destructive & Non Destructive Testing (NDT) Reports from NABL Approved Labs
Material Finish	Electro-Galvanized Coating, Black Finish, Blackodising Finish, Sand Blasting, or Pickled Finish in case of Stainless Steel Swage Nipples
